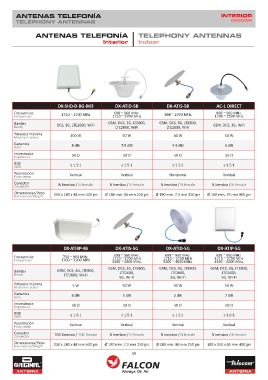

Page 59 - Catálogo antenas

ANTENAS TELEFONÍA INTERIOR
TELEPHONY ANTENNAS INDOOR

ANTENAS TELEFONÍA TELEPHONY ANTENNAS
Interior Indoor

DX-SHD-D-BG-IM3 DX-ATID-5B DX-ATIS-5B AC-1 DIRECT
Frecuencias 1710 ~ 2700 MHz 698 ~ 960 MHz. 698 ~ 2700 MHz 806 ~ 960 MHz.
Frequencies 1710 ~ 2700 MHz 1700 ~ 2500 MHz
Bandas DCS, 3G, LTE2600, WiFi GSM, DCS, 3G, LTE800, GSM, DCS, 3G, LTE800, GSM, DCS, 3G, WiFi
Bands LTE2600, WiFi LTE2600, WiFi
Potencia máxima 100 W 50 W 50 W 50 W
Maximum power
Ganancia 8 dBi 7.5 dBi 4.5 dBi 6 dBi
Gain
Impedancia 50 Ω 50 Ω 50 Ω 50 Ω
Impedance
ROE ≤ 1.5:1 ≤ 1.5:1 ≤ 1.5:1 ≤ 1.5:1
SWR
Polarización Vertical Vertical Horizontal Vertical
Polarization
Conector N hembra / N female N hembra / N female N hembra / N female N hembra / N female
Connector
Dimensiones/Peso 210 x 180 x 48 mm 450 grs Ø 186 mm, 86 mm 250 grs Ø 190 mm, 7.3 mm 250 grs Ø 160 mm, 75 mm 400 grs
Dimensions/Weight

DX-ATIBP-4B DX-ATIS-5G DX-ATID-5G DX-ATIP-5G
698 ~ 960 MHz.
698 ~ 960 MHz.
698 ~ 960 MHz.
Frecuencias 750 ~ 960 MHz. 1710 ~ 2700 MHz 1710 ~ 2700 MHz 1710 ~ 2700 MHz
Frequencies 1700 ~ 2900 MHz 3300 ~ 4000 MHz. 3300 ~ 4000 MHz. 3300 ~ 4000 MHz.
GSM, DCS, 3G, LTE800, GSM, DCS, 3G, LTE800, GSM, DCS, 3G, LTE800,
Bandas GSM, DCS, 3G, LTE800, LTE2600, LTE2600, LTE2600,
Bands LTE2600, Wi-Fi
5G, Wi-FI 5G, Wi-FI 5G, Wi-FI
Potencia máxima 5 W 50 W 50 W 50 W
Maximum power
Ganancia 8 dBi 5 dBi 5 dBi 7 dBi
Gain
Impedancia 50 Ω 50 Ω 50 Ω 50 Ω
Impedance
ROE ≤ 1.5:1 ≤ 1.5:1 ≤ 1.5:1 ≤ 1.8:1
SWR
Polarización Vertical Vertical Vertical Vertical
Polarization
Conector TNC hembra / TNC female N hembra / N female N hembra / N female N hembra / N female
Connector
Dimensiones/Peso 210 x 180 x 48 mm 450 grs Ø 190 mm, 7.3 mm 250 grs Ø 186 mm, 86 mm 250 grs 180 x 158 x 60 mm 400 grs
Dimensions/Weight
