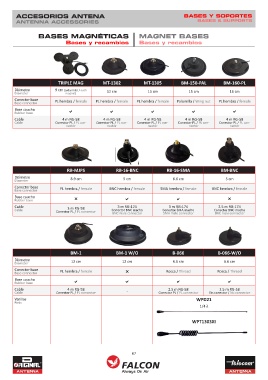

Page 67 - Catálogo antenas

ACCESORIOS ANTENA BASES Y SOPORTES
ANTENNA ACCESSORIES BASES & SUPPORTS

BASES MAGNÉTICAS MAGNET BASES
Bases y recambios Bases y recambios

TRIPLE MAG MT-1302 MT-1305 BM-150-PAL BM-160-PL
Diámetro 9 cm (cada imán / each 12 cm 15 cm 15 cm 16 cm
Diameter magnet)
Conector base PL hembra / female PL hembra / female PL hembra / female Palomilla / Wing nut PL hembra / female
Base connector
Base caucho
Rubber base a a a a a
Cable 4 m RG-58 4 m RG-58 4 m RG-58 4 m RG-58 4 m RG-58
Cable Conector PL / PL con- Conector PL / PL con- Conector PL / PL con- Conector PL / PL con- Conector PL / PL con-
nector nector nector nector nector

RB-MJPS RB-16-BNC RB-16-SMA BM-BNC
Diámetro 8.9 cm 5 cm 6.6 cm 5 cm
Diameter
Conector base PL hembra / female BNC hembra / female SMA hembra / female BNC hembra / female
Base connector
Base caucho
Rubber base r a a r
Cable 3 m RG-58 3 m RG-174 3 m RG-174 2.5 m RG-174
Cable Conector PL / PL connector Conector BNC macho Conector SMA macho Conector BNC macho
BNC male connector
SMA male connector
BNC male connector

BM-1 BM-1 W/O B-066 B-066-W/O
Diámetro 12 cm 12 cm 6.6 cm 6.6 cm
Diameter
Conector base PL hembra / female Rosca / Thread Rosca / Thread
Base connector r
Base caucho
Rubber base a a a a
Cable 4 m RG-58 - 2.5 m RG-58 2.5 m RG-58
Cable Conector PL / PL connector Conector PL / PL connector Sin conector / No connector
Varillas WPD21
Rods
1/4 λ

WPT1303XI
1/4 λ
